Manual Insertion Card Reader: CRT-286-A, CRT-286-B, CRT-286-C, CRT-286-D
Manual Swipe Card Reader
Name: Manual Insertion
Contactless IC Card Reader

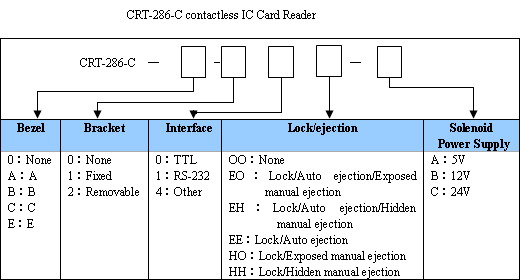

Model : CRT-286-C serial
Features:

ISO14443-A standard(Mifare ONE)
Mechanical lock/auto ejection
RS-232/TTL interface
Provide operation commands for clients' second time R&D
Application: ¨‹Self-service terminal
¨‹Access control system
¨‹Vending machine
¨‹POS
¨‹Adding value machine
¨‹multi-media information kiosk
Specification:
Card standard ISO/14443-A
Operating frequency 13.56 MHz
Operating distance available 90mm(naked board)
Key memory NVRAM
Communication speed 105k bps
PCB size 132mm ¡Á 75mm
Operating voltage DC 5V£¨¡À5%£©
Operating current 95mA max
Operating temperature -10¡æ~+70¡æ
Storage temperature -20¡æ~+80¡æ
Operating humidity 90% max£¨standard atmosphere£©
